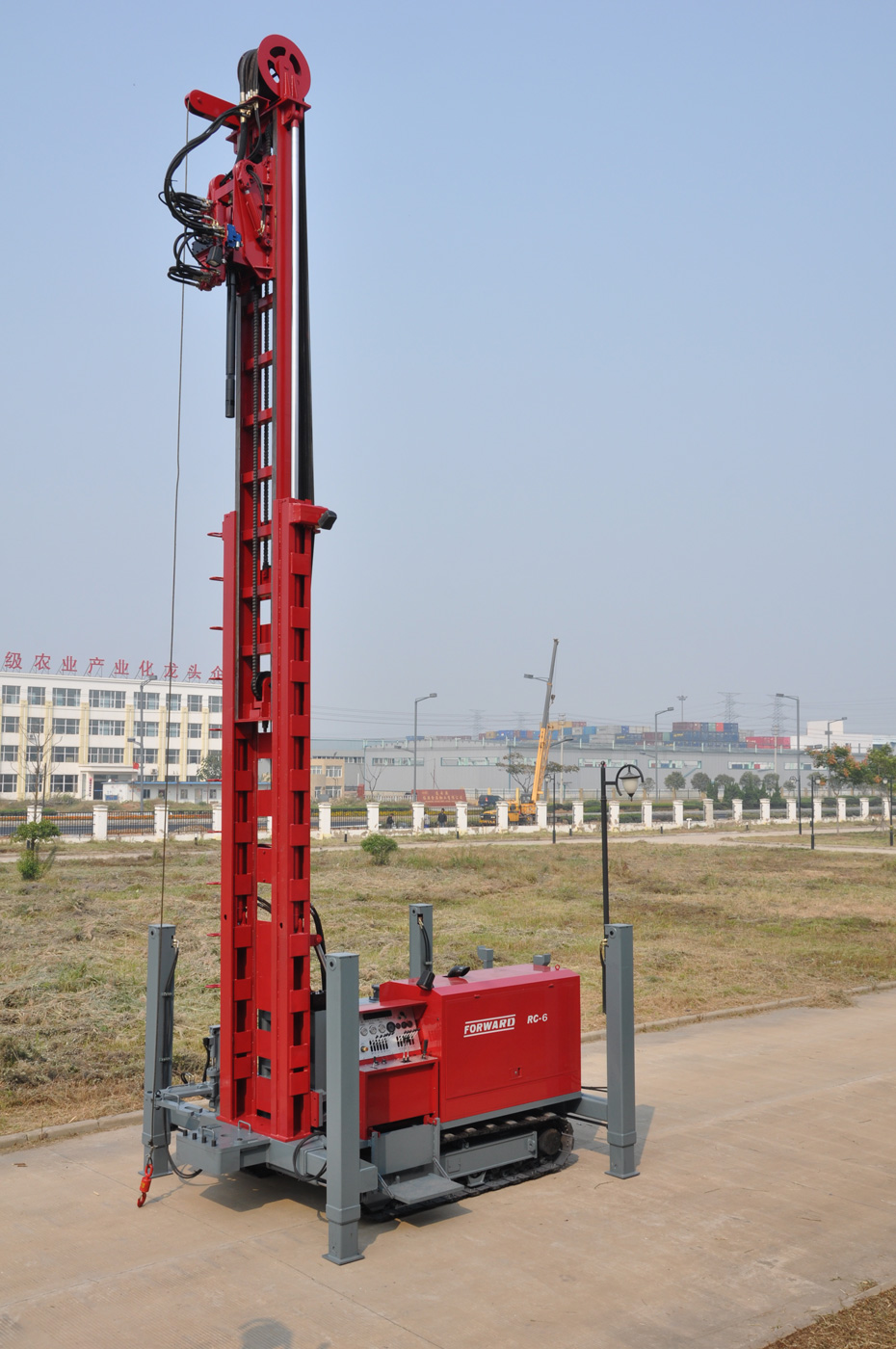

RC-6 Su Sondaj Makinasi
RC6 multifunction drilling rig is a newly developed multi-functional full hydraulic drilling rig, the rig is suitable for plains, hilly land, hot and cold regions ,the machine is tracked with self-propelled chassis, available in wells, core exploration, shallow coal bed methane and other construction. It could meet to mud drilling tamping pipe hammer drilling, air-lift reverse circulation drilling and other drilling methods according to users’ requirements. The rig is low labor
intensity, high drilling efficiency and high security for the workers.
Specifications
RC6 Water Well Crawl rig
Technical characteristics
| Track | |||
| Moving Speed | Low speed | 3 km/h | |
| High speed | 4.5 km/h | ||
| Diesel engine | |||
| Model | CUMMINS 8CT turbocharged | ||
| Power | 264 kW | ||
| Type of cooling | Water cooling | ||
| Rotation speed | 2200 rpm | ||
| Cylinders quantity/ capacity | 8.3 L | ||
| Fuel tank capacity | 220 L | ||
| Drilling capability | |||
| 3- 1/2 in drill rod | 780 m | ||
| 4-1/2 in drill rod | 600 m | ||
| 5 in drill rod | 450 m | ||
| Mast | |||
| Mast Height (fully extended) | 11.3 m | ||
| Power head distance (stroke) | 7 400 mm | ||
| Applicable drill rod | Diameter 50-127mm, Length 6.2m | ||
| Push and pull ability of power head | |||
| Maximum hoist capacity (up) | 220 kN | ||
| Maximum hoist capacity (down) | 110 kN | ||
| Maximum hoisting speed | 30 m/min | ||
| Hoisting speed | Full load 15m/min | ||
| Rotation | |||
| Gears | 2 | ||
| Low speed | 0~60 rpm | 16 800 Nm | |
| High speed | 0~170 rpm | 1 100 Nm | |

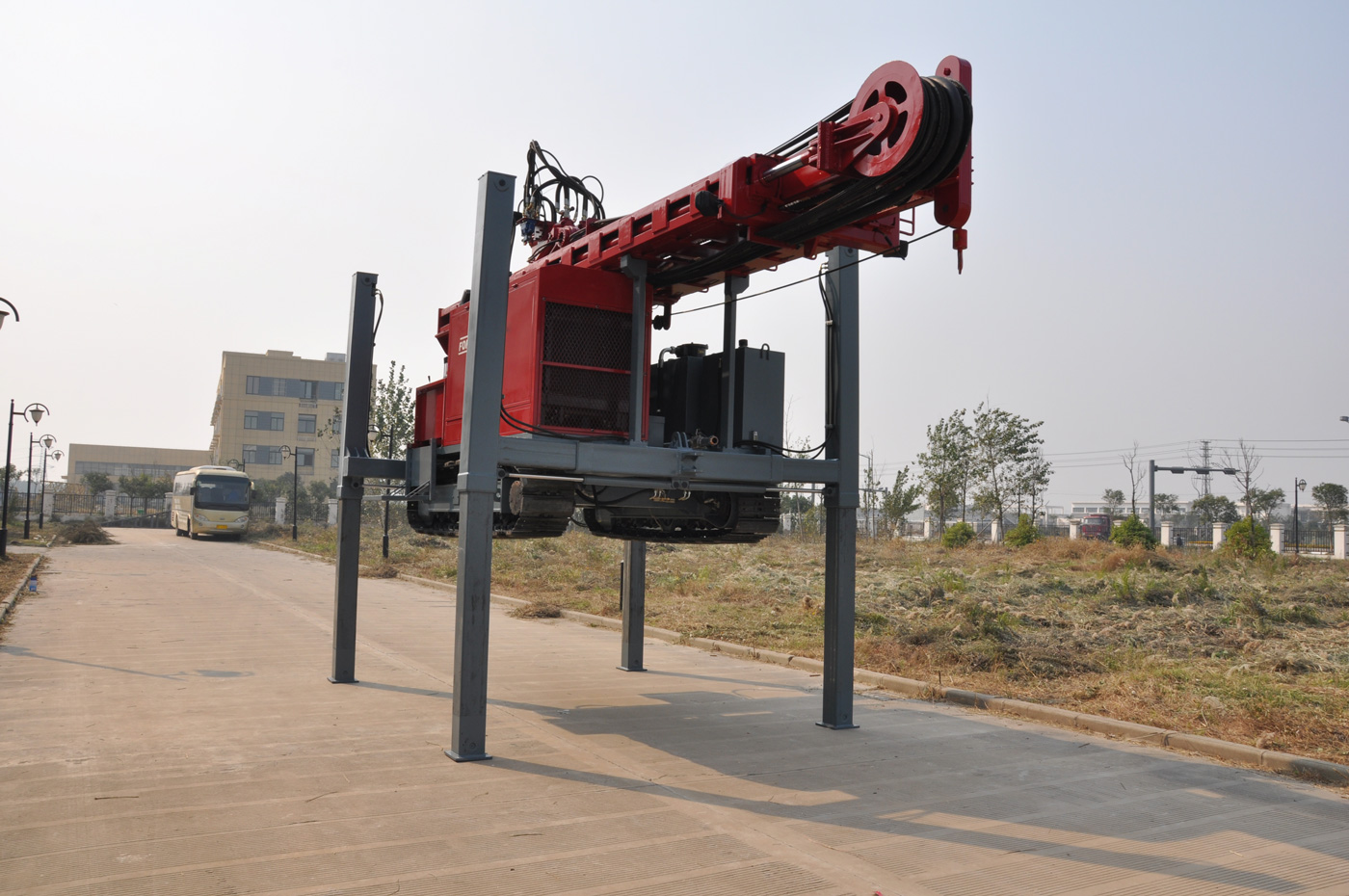

| Adjusting angle of mast | 0-90º | ||
| Hoist crane at the top | |||
| Maximum hoist capacity | 80 kN | ||
| Diameter of steel wire rope | 22 mm | ||
| Length of steel wire rope | 45 m | ||
| Drilling table | |||
| Applicable drill rod | 50-127mm | ||
| Maximum Diameter | 600 mm | ||
| Dimensions and weight | |||
| Dimensions in operation | 6 842 x 2 800 x 12 500 mm | ||
| Dimension in transportation | 12 200x 2 200 x 3 681 mm | ||
| Weight | 15 000 kg | ||
